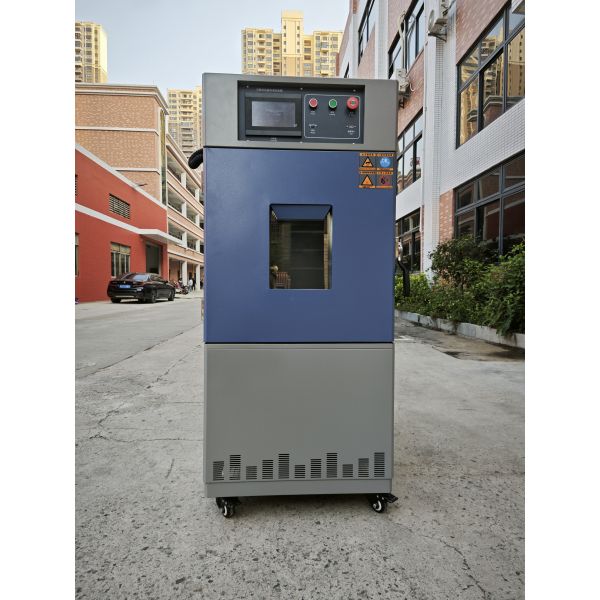

PLC Control Low Pressure Test Machine Vacuum Drying Oven 420L 1.5KW

Name: PLC Control Low Pressure Test Machine Vacuum Drying Oven 420L 15KW
Brand: HBYIQI
Price: 1 USD

Quality PLC Control Low Pressure Test Machine Vacuum Drying Oven 420L 1.5KW for sale

Brand Name : HBYIQI

Model Number : HB-DQY-G-420L(A/B/C)

Certification : ISO-9001

Place of Origin : China

MOQ : 1SET

Price : Negotiation

Payment Terms : T/T

Delivery Time : 15days

Packaging Details : International Standard Package

Inner Chamber Size : W750xD750xH750mm

Outer Chamber Size : W1070xD1070xH2000mm

Model A : 101Kpa ~ 20Kpa

Model B : 101Kpa ~ 5Kpa

Model C : 101Kpa ~ 0.5Kpa

Heating Method : Surround/Partition Heating

Contact Now

Brand: Hengbang Instruments HBYIQI

Equipment Name: Low Pressure Drying Oven 420L

Equipment Purpose

The low pressure drying oven (also known as a vacuum drying oven) is specifically designed for drying heat-sensitive, easily decomposable, and easily oxidizable substances. It can be filled with inert gas (optional), and is especially suitable for quickly drying items with complex compositions.

Technical Parameters

Model	HB-DQY-G-420L(A/B/C)	Accept Customization
Inner Chamber Dimensions	W750xD750xH750mm	Accept Customization
Outer Chamber Dimensions	W1070xD1070xH2000mm	Accept Customization
Inner Chamber Material	Reinforced Steel + Stainless Steel (Thickness ≥ 5.0mm)
Outer Chamber Material	SECC Steel Plate, Fine Powder Coating Treatment (Thickness 1.2mm)
Structure	All-in-one Structure
Temperature Range	RT + 10℃ ~ 200℃
Heating Method	Surround Heating / Partition Heating
Control Method	PLC Touch Screen Control and Display
Air Pressure	Type A: 101Kpa ~ 20Kpa Type B: 101Kpa ~ 5Kpa Type C: 101Kpa ~ 0.5Kpa
Unit	Kpa / pa
Resolution	0.1kPa
Timing Time	999H59M59S
Visible Window	200x200mm (20mm Thick Tempered Explosion-proof Glass with Protective Steel Mesh)
Power Supply	AC 220V 50HZ (or Customized According to Country)
Power (Approx.)	1.5KW	2.5KW
Additional Items	Terminal Block Device.

PLC Control Low Pressure Test Machine Vacuum Drying Oven 420L 1.5KW

For more information, please contact Hengbang Instruments (HBYIQI).
